SPECIFICATIONS

Base plate material: Aluminum profile

Certification: CE

Current: 0.6A

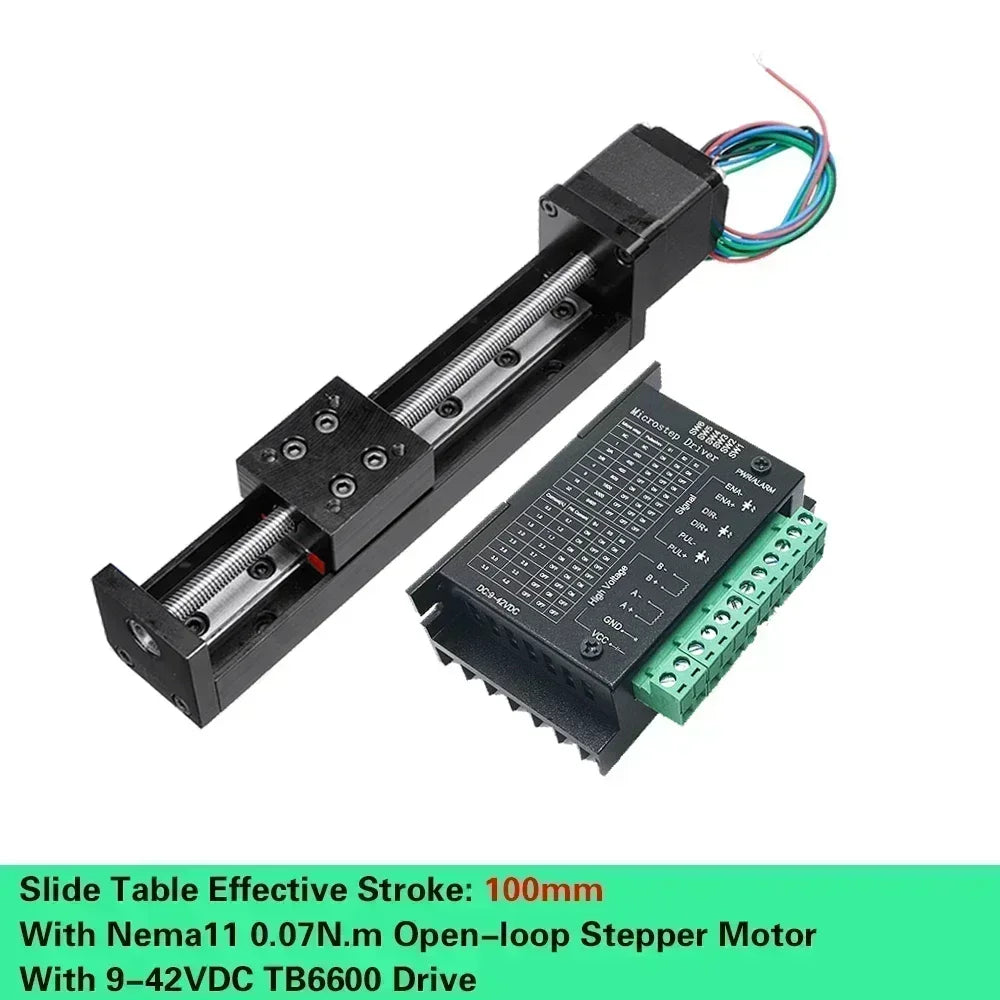

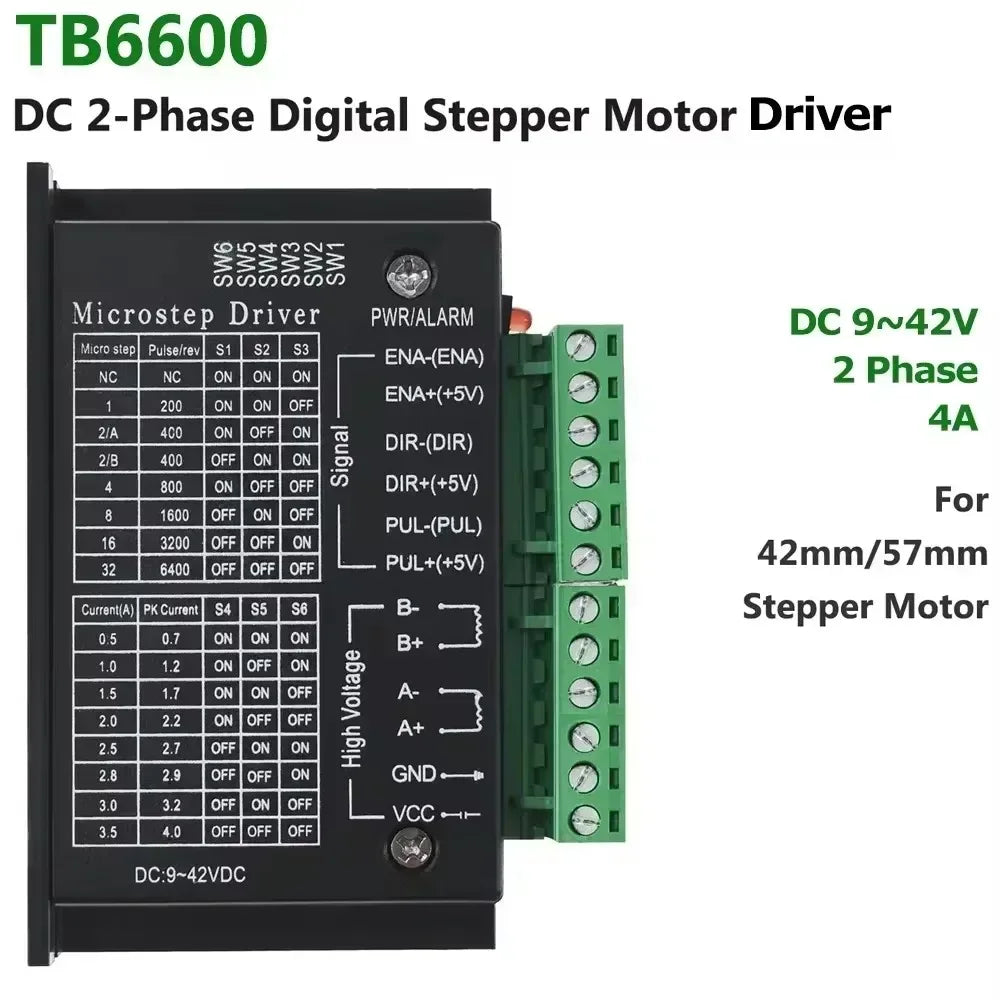

Drive Input voltage: DC 9-42V

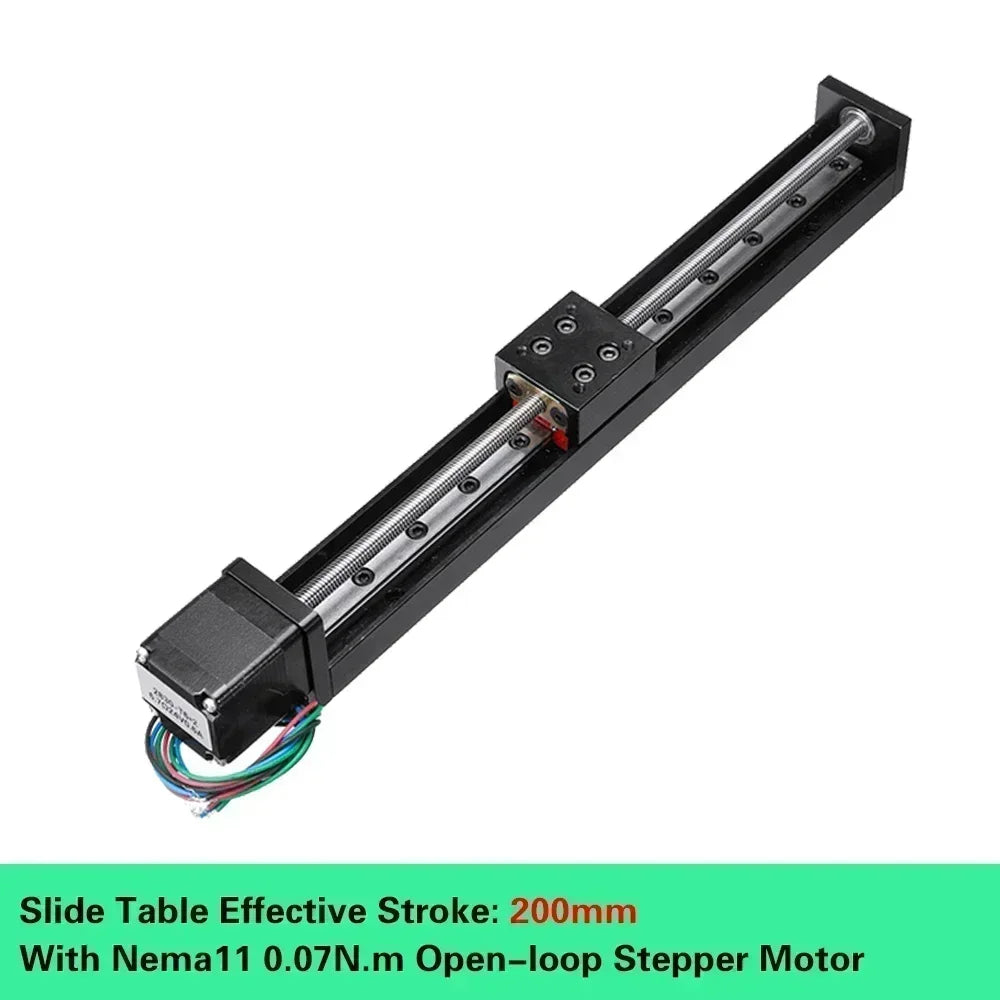

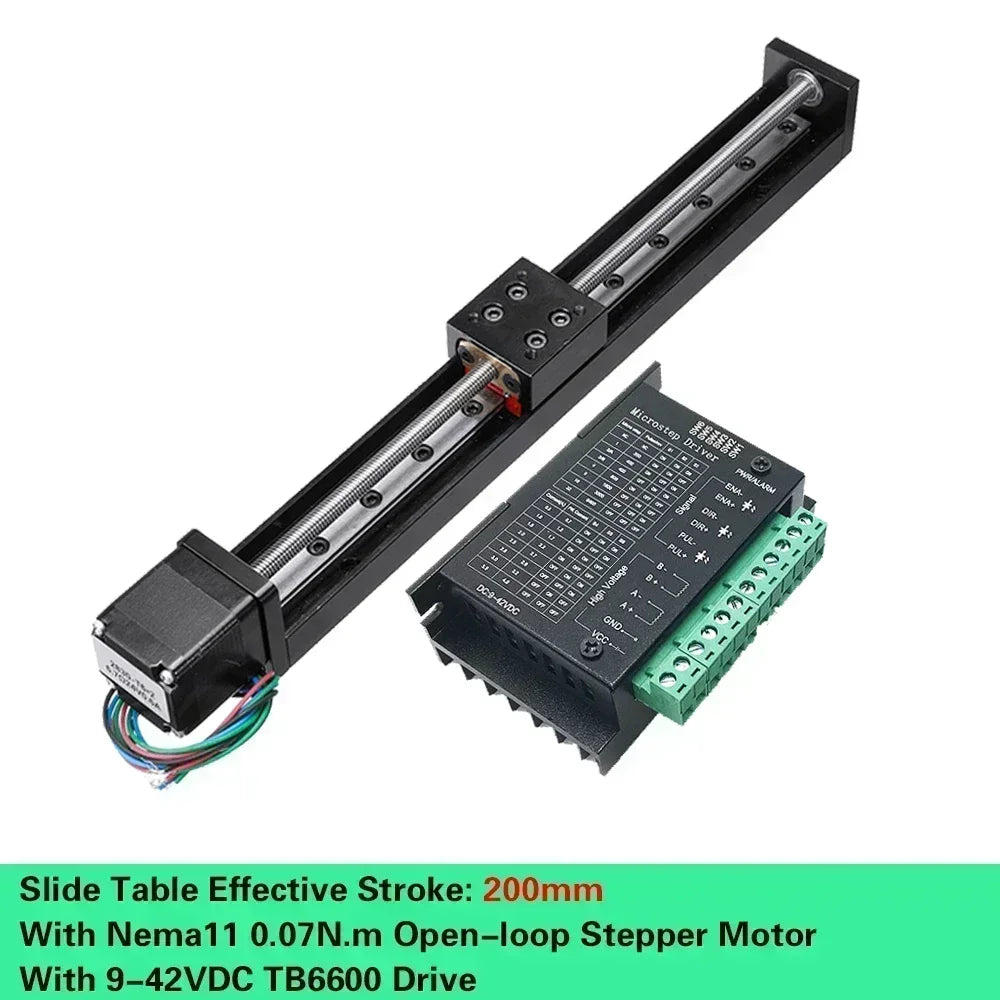

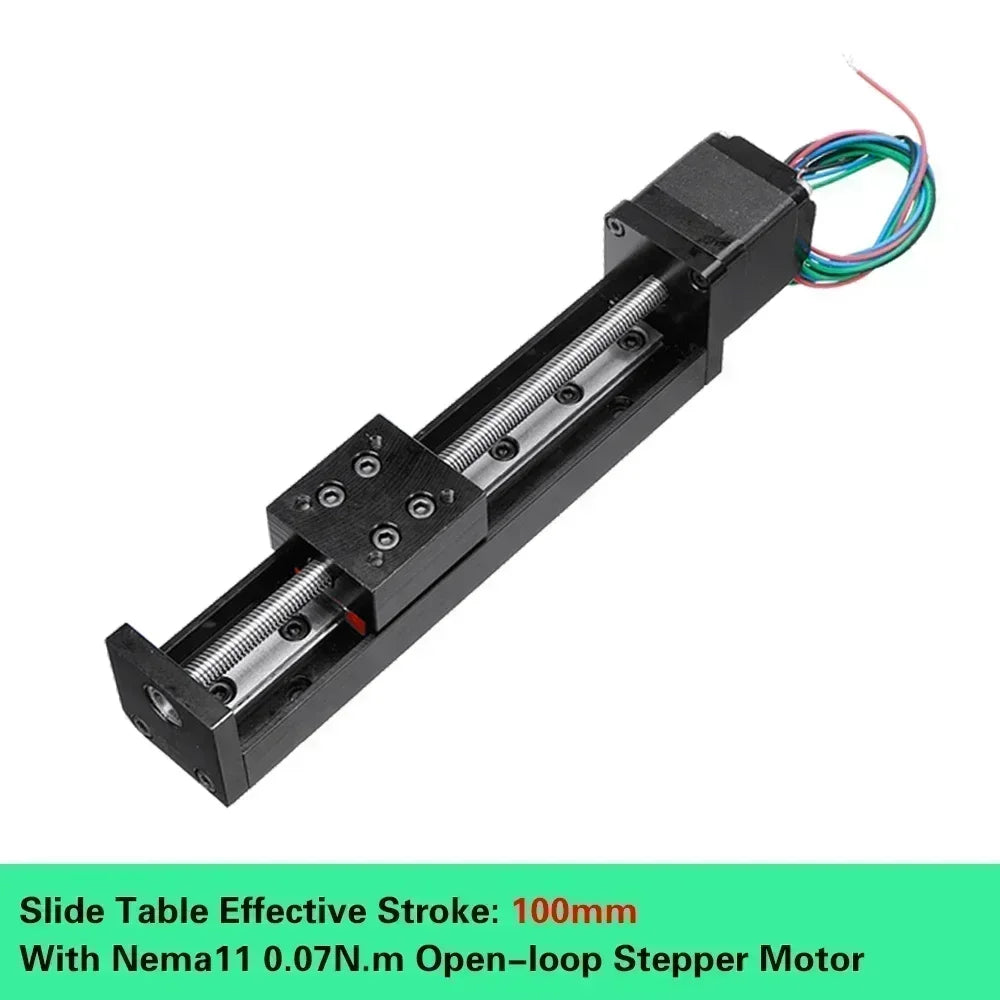

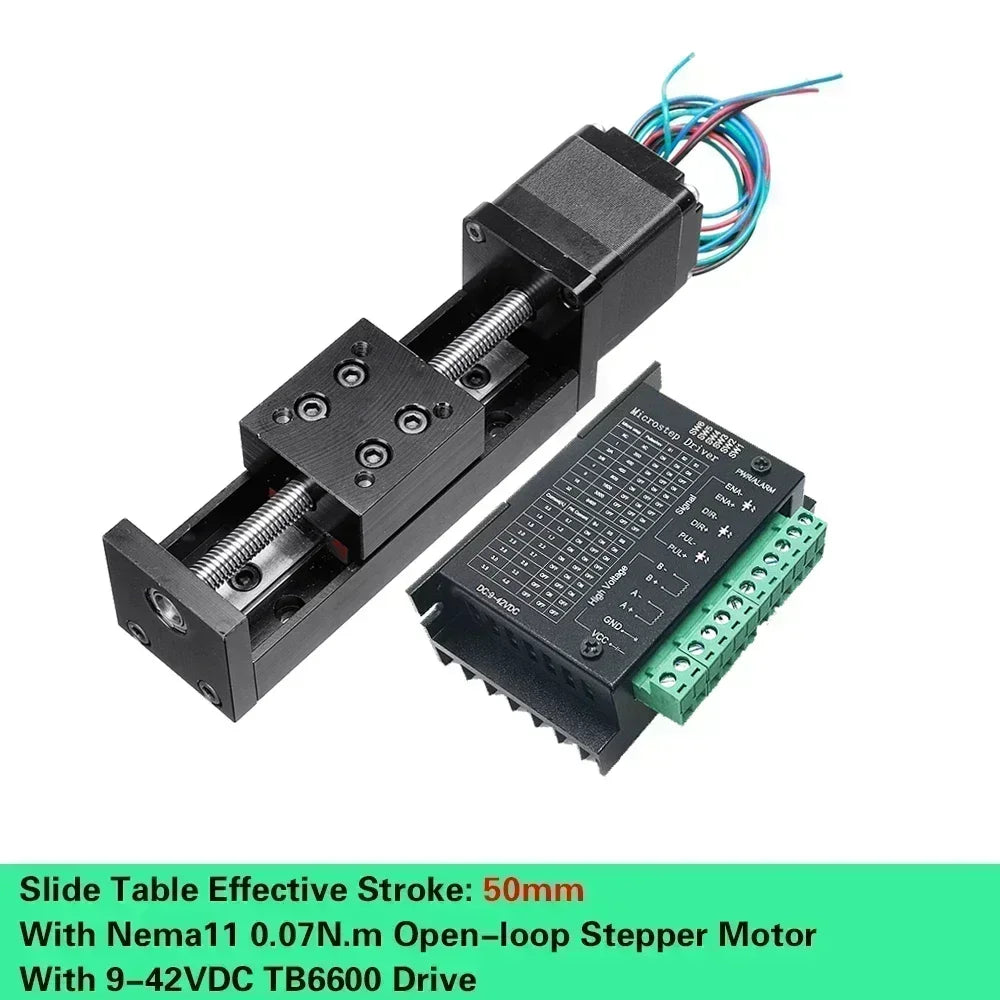

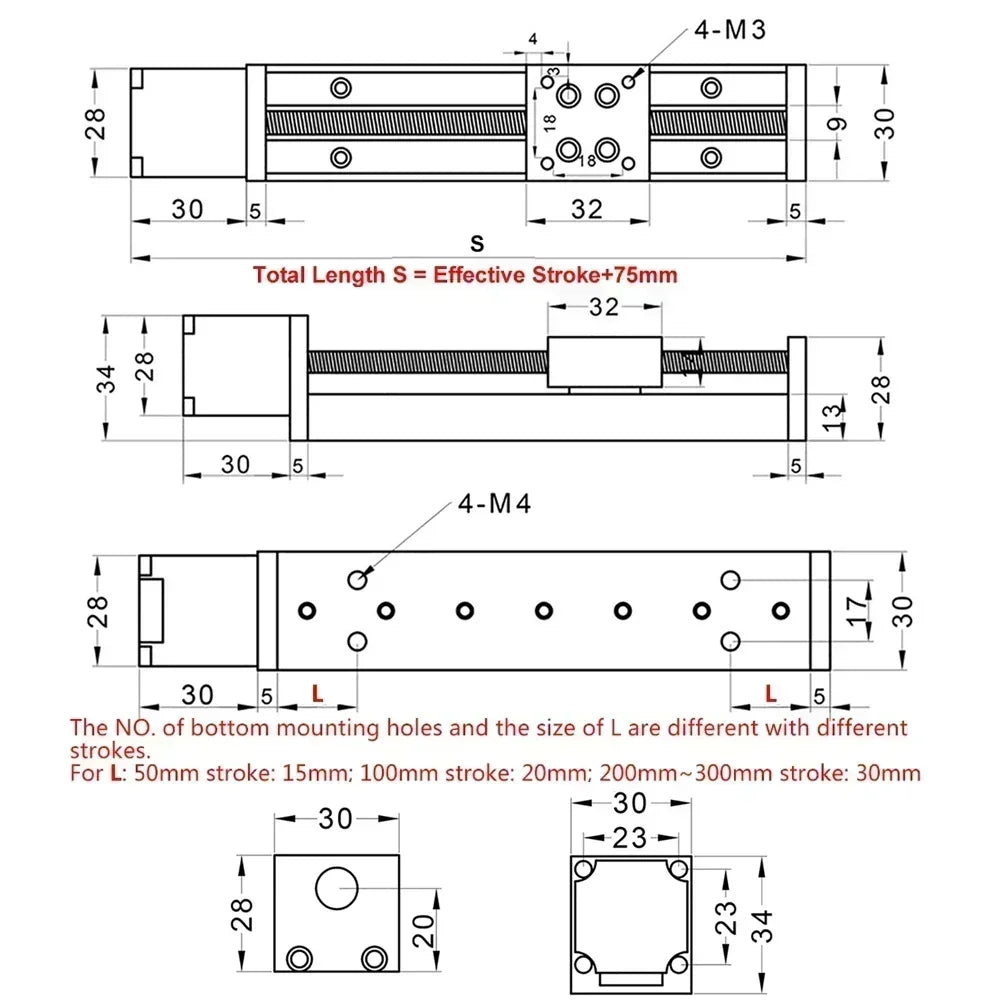

Effective stroke: 50mm-300mm

Guide Width or Diameter: 6mm

Hign-concerned Chemical: None

Horizontal load: 5KG (Max)

Maximum speed: 80mm/s

Mobile panel size: 30mm*32mm

Model Number: T0601

Motor Holding torque: 0.07N.m

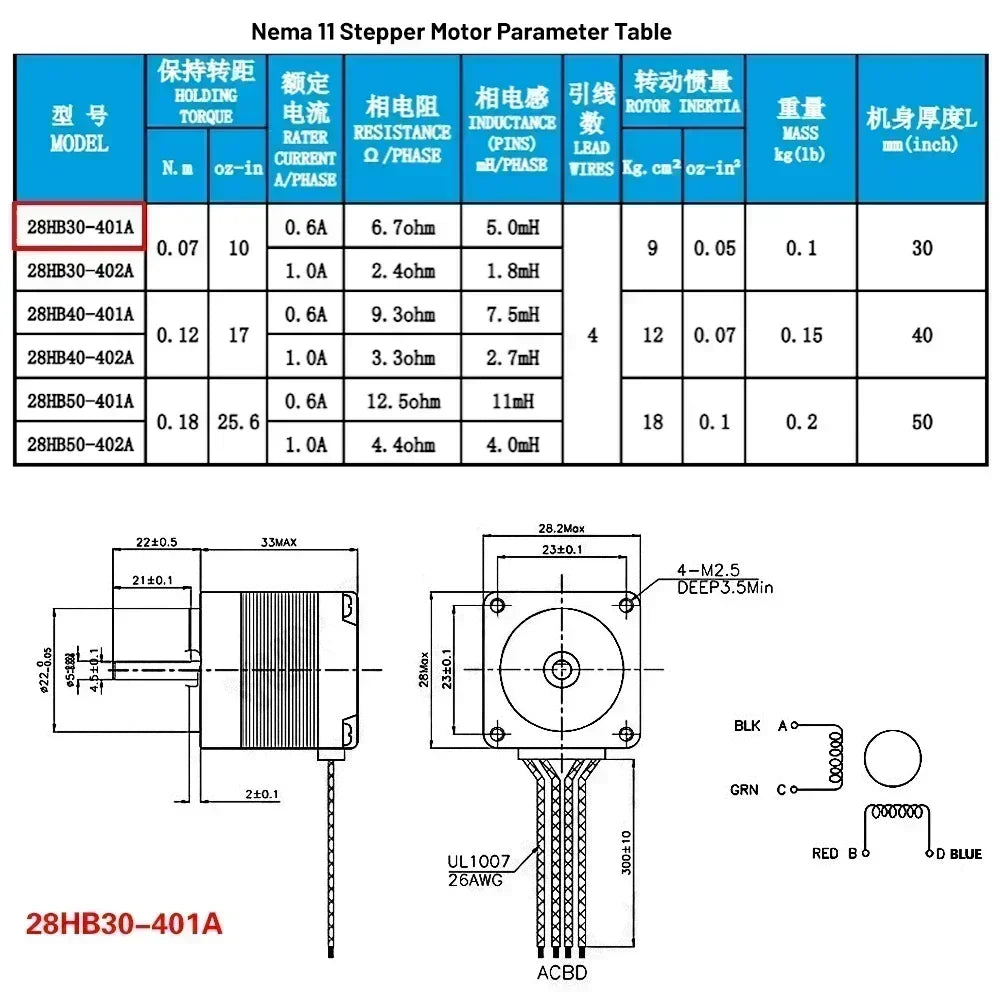

Motor type: Nema11 2PH Open-loop Stepper Motor

Product keyword: Electric Sliding Table

Rail material: Bearing steel

Repeat positioning accuracy: 0.02mm-0.03mm

Screw Precision: C7

Slide type: Trapezoidal lead screw sliding table

Step angle: 1.8degree

Vertical load: 2.5KG (Max)
